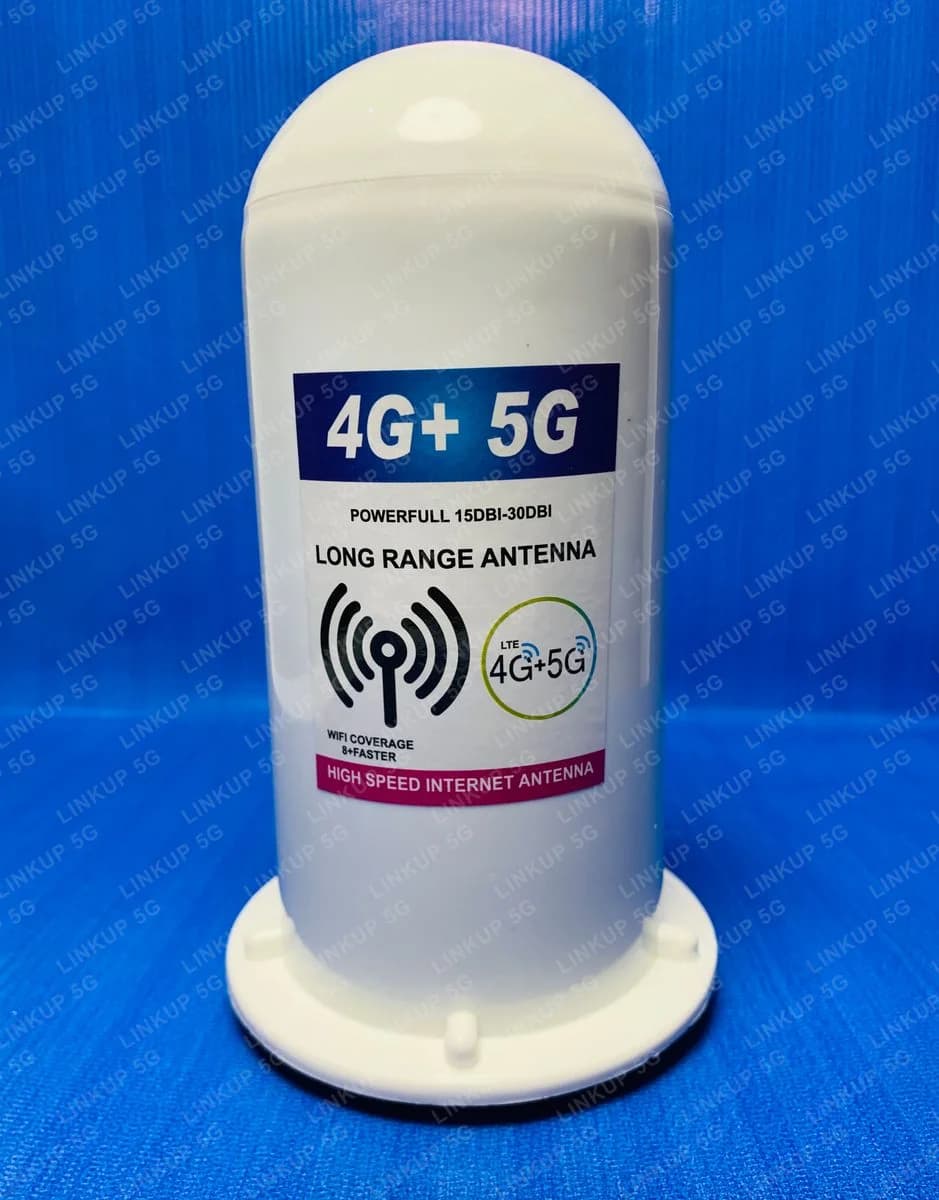

HAOA-0809 High-Gain 4G+5G External Antenna
A high-gain external antenna that plugs into your router's SMA port for a stronger signal.
This is a passive external antenna, not a powered device: it plugs into a router's existing SMA antenna port and gives it a bigger, better-positioned receiver than the small antenna built into the router itself. It's rated 15-30dBi by its manufacturer and covers both 4G LTE and 5G bands, so it works with either kind of router. The main use case is the same one behind LinkUp 5G's weak-signal guides: a router with an antenna port sitting somewhere the signal is borderline. Its 15 meter (50 ft) cable is what makes that practical, because the antenna can go where the signal actually is, such as an upper floor, a far window, or outside, while the router stays where your devices are.
+ PKR 200 delivery charge, nationwide
Cash on Delivery
Best Quality
Genuine Products
HAOA-0809 High-Gain 4G+5G External Antenna
PKR 3,000
Your router has an antenna port, but weak signal where it sits
Routers with an external antenna port, like the Huawei B315s and E5172, ship with that port specifically because their built-in antenna isn't always enough. This antenna extends that port on a 15 meter (50 ft) cable, so it can sit near a window, on an upper floor, or outside, wherever the signal is actually stronger, while the router itself stays wherever is convenient indoors. It won't help a router with no external antenna port to begin with, and it can't create signal in a location with no cellular coverage at all.
Best For
- Owners of a router with an external SMA antenna port, including LinkUp 5G's Huawei B315s and E5172
- Addresses where the router sits somewhere with borderline reception
- Anyone who needs the antenna well away from the router, since its 15 meter (50 ft) cable reaches an upper floor, a far window, or outside
Not Ideal For
- Routers or pocket WiFi devices with no external antenna port, since there is nothing to plug this into
- Locations with no cellular signal nearby at all, since an antenna extends reach but can't create signal that isn't there
- Anyone needing a connector other than SMA-male; check your router's antenna port before ordering
Specifications
- Omnidirectional design, covers 4G LTE and 5G bands
- Manufacturer-rated 15-30dBi gain*
- 15 meter (50 ft) cable, long enough to reach an upper floor, a window, or outside while the router stays put
- SMA-male connector, matching the antenna port on the Huawei B315s and E5172
- Compact stick-style body, no separate mounting bracket needed
- Compatible Devices
- Any router with an external SMA antenna port (e.g. Huawei B315s, Huawei E5172)
- Frequency Coverage
- 4G LTE + 5G*
- Gain
- 15-30dBi*
- Cable Length
- 15 meters (50 ft)
- Connector
- SMA male
- Design
- Omnidirectional, stick-style
Gain and frequency figures marked * are the manufacturer's printed rating on the unit itself, not an independent test result; real-world signal improvement depends on your existing coverage, antenna placement, and the router it's paired with. Cable length is confirmed by LinkUp 5G.
Setup Guide
- 1
Power off your router before connecting the antenna.
- 2
Screw the SMA-male connector onto your router's external antenna port.
- 3
Position the antenna near a window, higher up, or outside, wherever your phone already shows the strongest signal.
- 4
Power the router back on and check the signal indicator or dashboard for improvement.
- 5
Reposition the antenna if needed: even a small change in placement can noticeably change reception.
Questions About This Antennas
Yes. Both have an external SMA antenna port built in, and this antenna's connector matches directly.
